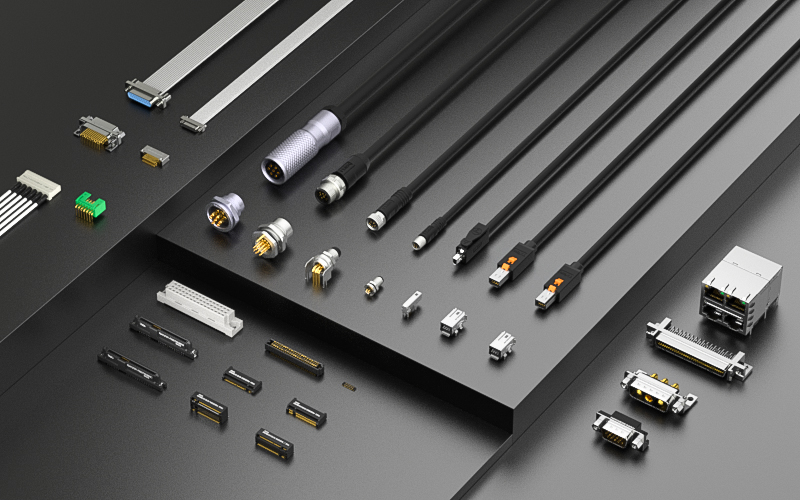

Industrial Connector Product Taxonomy

Board-to-Board and Mezzanine Connectors

Product Line Positioning: Compact PCB-to-PCB interconnection for space-constrained electronic systems.

Board to Board Connector

• Pitch options: 0.35 mm, 0.4 mm, 0.5 mm, 0.8 mm
• Mated height: 0.6 mm to 8.5 mm
• Positions: up to 100
• Rated current/voltage: 0.3A/30V, 0.3A/60V, 0.5A/50V
• Operating temperature: -40°C to +105°C
• Resource Links: Product Details | Specification | Test Report

Memory Module Socket

• Resource Links: Product Details

Wire-to-Board and Wire-to-Device Connectors

Product Line Positioning: Board-level and cable-level interconnection for power and signal wiring in industrial, automotive, and portable devices.

EWB Connector

• Resource Links: Product Details

Wire to Board/Wire Connector

• Waterproof and dustproof construction
• Impact and vibration resistance
• Resource Links: Product Details | Drawing | Specification

Pin Header/Female Header

• Resource Links: Product Details

Box Header/IDC

• Crimping-type IDC connection for flat wire
• Butterfly buckle locking fittings
• Resource Links: Product Details | Specification

Micro Match

• Contact pitch: 1.27 mm
• PA9T heat-resistant resin body, UL94 V-0
• Operating temperature: -40°C to +105°C
• Resource Links: Product Details | Specification | Test Report

SIP Socket

• Resource Links: Product Details

Contact Connector

• Resource Links: Product Details

Terminal and Power Connection Components

Product Line Positioning: Field wiring and power connection components for industrial control, power supply, and high-current charging applications.

Terminal Block

• Wire gauge: 24-10 AWG
• Operating temperature: -40°C to +105°C
• Screw-locking and spring-clip variants
• Resource Links: Product Details | Specification | Test Report

Nut Terminal

• Resource Links: Product Details

Solderless Terminal

• Resource Links: Product Details

Charging Pile Module Power Connector

• High-current transmission capability
• Heat-resistant and flame-retardant design
• Resource Links: Product Details | Specification

Ethernet, Telecom and Data Connectors

Product Line Positioning: High-speed industrial Ethernet, network, and data connection solutions for harsh electromagnetic and vibration environments.

Single Pair Ethernet (SPE) Connector

• 1000 m at 10 Mbps, 40 m at 1 Gbps
• IEEE 802.3bu/cg compliant, PoDL up to 50W
• IEC 63171-2 (IP20) compliant
• Operating temperature: -40°C to +85°C
• Resource Links: Product Details | Specification | Test Report

Mini I/O Connector

• Cat5e 100Mbps, Cat6A 1000Mbps
• PoE/PoE+/PoE++ support
• IEC 61076-3-122 compliant
• 8 positions, 1.27 mm pitch
• Resource Links: Product Details | Drawing | Specification

Network Connector (RJ45/RJ11)

• 8P8C, 10P8C, 12P8C, 6P6C, 4P4C contacts
• Industrial RJ45: 30N insertion/extraction, 50N retention, 750+ mating cycles
• IEEE802.3 compliant stacked Gigabit Ethernet port
• Resource Links: Product Details | Specification | Test Report

Fiber Optic Transceiver Module

• Resource Links: Product Details

DIN 41612 Connector

• 32 and 48 positions, 2.54 mm pitch
• Rated: 2A/100V
• Operating temperature: -55°C to +105°C
• Resource Links: Product Details | Specification

Circular and Industrial Connectors

Product Line Positioning: Circular and heavy-duty industrial connectors for harsh-environment power, signal, and data connection, aligned with global IP and IEC compliance standards.

M5 Circular Connector — IP68

• A coding, 3 or 4 positions
• IEC 61076-2-105 compliant
• Operating temperature: -40°C to +105°C
• Resource Links: Product Details | Specification

M8 Circular Connector — IP68 / IP65

• A and B coding, positions 2-8
• IEC 61076-2-104 compliant
• Resource Links: Product Details | Specification | Test Report

M12 Circular Connector — IP67 / IP68

• A, B, D, X, Y coding; CAT5 to CAT6A
• IEC 61076-2-101, IEC 61076-2-109, IEC 61076-2-113 compliant
• Resource Links: Product Details | Specification | Test Report

M16 Circular Connector — IP68

• 7 or 8 positions, threaded locking
• Salt spray resistance over 1000 hours (specified variant)
• 50-meter underwater rated, 15 kg pulling load rated
• Resource Links: Product Details | Specification | Test Report

7/8″ Connector — IP67

• 13A/600V, positions 3, 4, 5
• Operating temperature: -25°C to +85°C
• Resource Links: Product Details | Specification

APF Circular Connector

• Resource Links: Product Details

Heavy-duty Connector (Rectangle)

• Resource Links: Product Details

D-Shaped, Micro, and SCSI Connectors

Product Line Positioning: Multi-pin D-shaped, micro-miniature, and SCSI connectors for data, control, and high-density signal transmission.

D-Sub Connector

• 9, 15, 37, mixed 18-position models
• Rated: 7.5A/300V, 5A/300V, 5A/500V, 3A/250V
• Operating temperature: -55°C to +125°C
• Resource Links: Product Details | Specification | Test Report

Micro-D Connector

• Contact pitch: 1.27 mm
• 9, 15, 37 positions
• Operating temperature: -55°C to +125°C
• Resource Links: Product Details | Specification

Nano-D Connector

• Resource Links: Product Details

Filter D-Sub Connector

• Resource Links: Product Details

EMI Filter Plate

• Resource Links: Product Details

SCSI Connector

• Positions: 14, 20, 36, 68, 100
• Operating temperature: -55°C to +105°C / -40°C to +105°C / -25°C to +85°C
• Resource Links: Product Details | Specification | Test Report

Application-Specific I/O and RF Connectors

Product Line Positioning: Input/output, board-edge, automotive, RF, and building automation application connectors.

USB Connector

• Resource Links: Product Details

IEEE1394 Connector

• Resource Links: Product Details

FPC/FFC Connector

• Resource Links: Product Details

Card Connector

• Resource Links: Product Details

Printed Circuit Connector

• JL23, JL24, JL27, JL35 series
• Operating temperature: -65°C to +125°C / -55°C to +125°C
• Resource Links: Product Details | Specification

OBD Connector

• 16 positions, SAE J1962 compliant
• Operating voltage: DC 9V-36V
• Resource Links: Product Details | Specification

Audio/Video Connector

• Resource Links: Product Details

Battery Connector

• Resource Links: Product Details

LVDS Connector

• Resource Links: Product Details

RF Connector

• SMA, SMB, MCRF, TNC categories
• 50 Ohm and 75 Ohm impedance
• Operating temperature: -55°C to +150°C
• Resource Links: Product Details | Specification | Test Report

KNX/EIB Connector

• EN/IEC 60998-2-2 compliant
• Rated: 7A/150V, 10A/300V
• Resource Links: Product Details | Specification

Customization Services

Product Line Positioning: Custom connector development and specification support for customer-specific applications.

Customization Services

• Custom dimensions and specifications
• Free sample data
• Resource Links: Product Details
