In today’s automated industrial environments, precision flow control is vital for safe and efficient operation. Among the many valve options available, the pneumatic three-way ball valve stands out for its versatility, durability, and ability to handle complex flow patterns. Whether used in chemical processing, water treatment, or power generation, choosing the right valve ensures reliable performance and long service life.
This buyer’s guide explains how to select the ideal pneumatic three-way ball valve for your system—highlighting the professional capabilities of Zhejiang Maikailun Automatic Control Valve Co., Ltd., a leading and trusted manufacturer of pneumatic actuators, valves, and automation solutions.
1. Understanding What a Pneumatic Three-Way Ball Valve Is

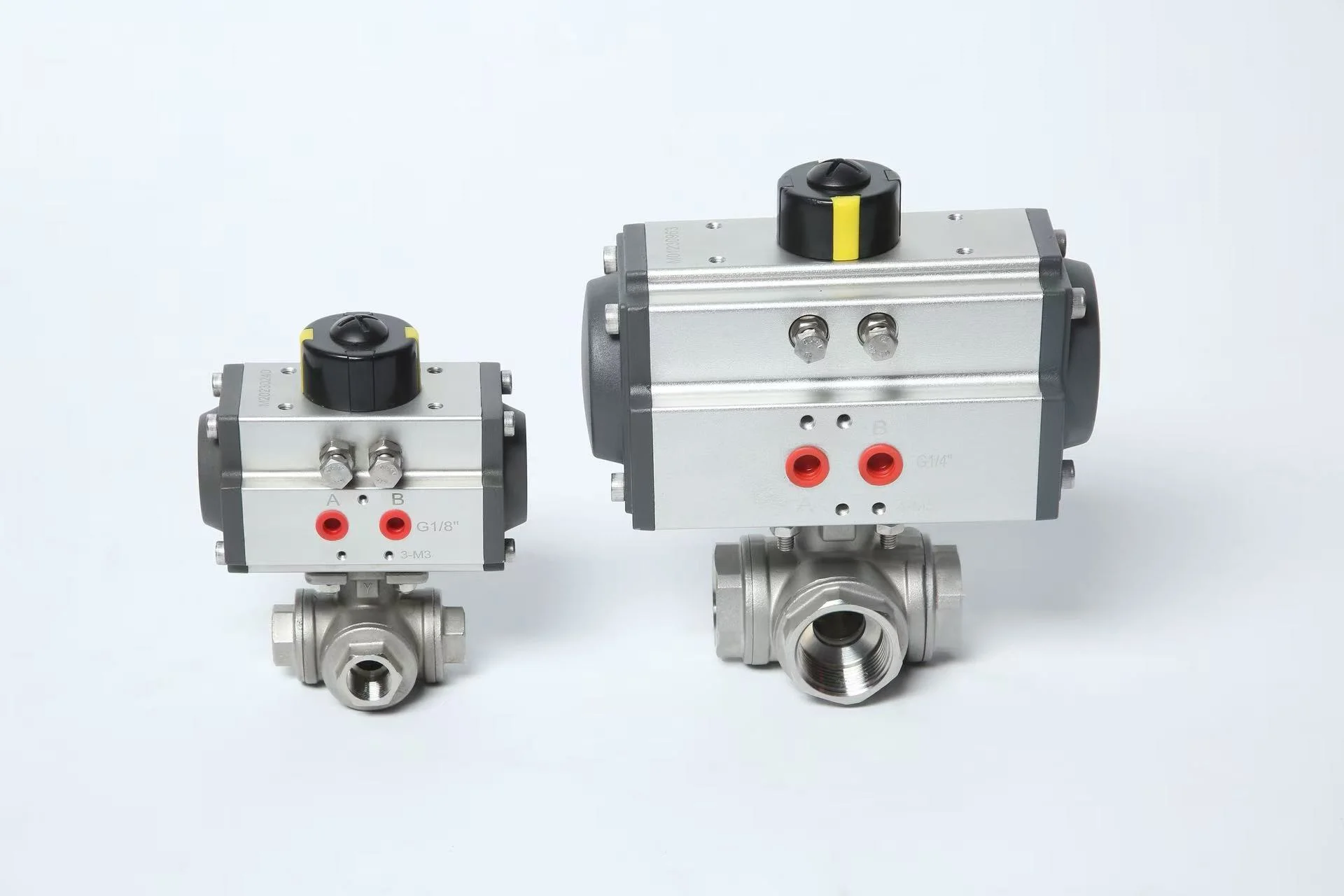

A pneumatic three-way ball valve is a valve that features three ports—allowing the user to divert, mix, or distribute fluid flow. It can be configured in either a T-type (for mixing or splitting flow) or an L-type (for directional switching).
Unlike standard two-way valves, a three-way ball valve simplifies piping layouts by reducing the number of valves and fittings required. When paired with a pneumatic actuator, it allows for fast, automated control using compressed air—making it perfect for industrial automation systems.
2. Key Benefits of Pneumatic Operation
Pneumatic actuation offers several significant advantages over manual or electric valve operation:
-
Fast Response Time: Pneumatic actuators can open or close valves in seconds, making them ideal for processes requiring quick adjustments.
-
Explosion-Proof Design: Because they use air pressure rather than electricity, pneumatic valves are safe for hazardous environments like chemical plants or oil refineries.
-
High Torque Output: They can easily handle high-pressure systems without excessive wear.
-
Low Maintenance: With fewer moving electrical parts, pneumatic systems are more durable and require less frequent servicing.
These characteristics make pneumatic three-way ball valves a preferred choice for industries where reliability and safety are critical.
3. Factors to Consider When Selecting a Pneumatic Three-Way Ball Valve
To choose the right valve, it’s essential to evaluate your application requirements and operational conditions carefully.
a) Flow Configuration (L or T Port)
-
L-Port (Diverting Type): Directs flow between two outlets but never allows flow through all three ports simultaneously.
-
T-Port (Mixing Type): Allows mixing of two streams or simultaneous distribution to multiple lines.
b) Material of Construction
Material selection determines resistance to pressure, temperature, and corrosion:
-
Stainless Steel: Ideal for corrosive or sanitary applications.
-
Carbon Steel: Suitable for high-pressure systems with non-corrosive media.
-
Brass or PVC: Used for lower-pressure and non-corrosive applications.
c) Actuator Type
The actuator drives the valve’s performance and control precision. Zhejiang Maikailun Automatic Control Valve Co., Ltd. provides a wide range of actuator options, including:
-
Stainless Steel Pneumatic Actuators – durable and corrosion-resistant.
-
P Series Rack-and-Pinion Actuators – compact, efficient, and ideal for precise torque control.
-
P Series Scotch-Yoke Pneumatic Actuators – deliver higher torque for heavy-duty applications.
-
Linear Hydraulic Actuators – perfect for direct stroke motion and high-force requirements.
Maikailun actuators cover bore sizes from φ32 mm to φ400 mm and torque ranges from 5 Nm to 50,000 Nm, making them suitable for virtually any industrial system.
d) End Connections
Choose the right connection based on your piping setup:
-
Flanged Ends for heavy-duty pipelines
-
Threaded Ends for easy assembly and maintenance
-
Welded Ends for high-pressure, leak-free operation
e) Automation Accessories
Automation requires precise feedback and control. Maikailun provides complete valve control packages that include:
-
Manual override devices
-
Limit switch boxes
-
Solenoid valves and filter regulators
-
Valve position feedback devices
These accessories ensure accurate positioning, monitoring, and remote control integration with DCS or PLC systems.
4. Performance and Reliability
A high-quality pneumatic three-way ball valve should provide:
-
Smooth and consistent flow with minimal pressure drop
-
High cycle life even under frequent actuation
-
Leak-tight shutoff for safety and product integrity
-
Resistance to vibration, temperature, and corrosion
Zhejiang Maikailun’s valves and actuators are manufactured to meet strict quality standards, offering stable operation and long service life under harsh industrial conditions.
5. Partnering with a Trusted Manufacturer
When selecting a pneumatic valve supplier, reliability and technical support are just as important as product quality.
Zhejiang Maikailun Automatic Control Valve Co., Ltd. has built a strong reputation as a leader in pneumatic actuators and valve automation systems. Beyond manufacturing, the company provides:
-
Custom valve automation solutions for different industries
-
Comprehensive technical guidance and installation support
-
After-sales services to ensure long-term system stability
With advanced engineering, wide torque coverage, and intelligent control options, Maikailun helps customers achieve efficient, safe, and fully automated flow control solutions.
Conclusion
Selecting the right pneumatic three-way ball valve involves more than just size and pressure—it’s about understanding your system’s flow needs, media compatibility, and automation goals. By considering factors such as flow configuration, materials, actuator type, and accessory integration, you can ensure optimal performance and safety.
As a trusted global manufacturer, Zhejiang Maikailun Automatic Control Valve Co., Ltd. delivers not only top-quality pneumatic valves and actuators but also complete automation solutions tailored to diverse industrial applications. Their commitment to innovation, reliability, and customer satisfaction makes them a preferred partner for modern flow control systems worldwide.
