In modern manufacturing, productivity is no longer defined only by output volume. Industries such as power transmission, telecommunications, aerospace, marine engineering, and industrial automation now demand braiding equipment that delivers speed, precision, stability, and flexibility at the same time.
As cable structures become more complex and production requirements continue to rise, traditional braiding machines often struggle to keep up with industrial-scale demands.

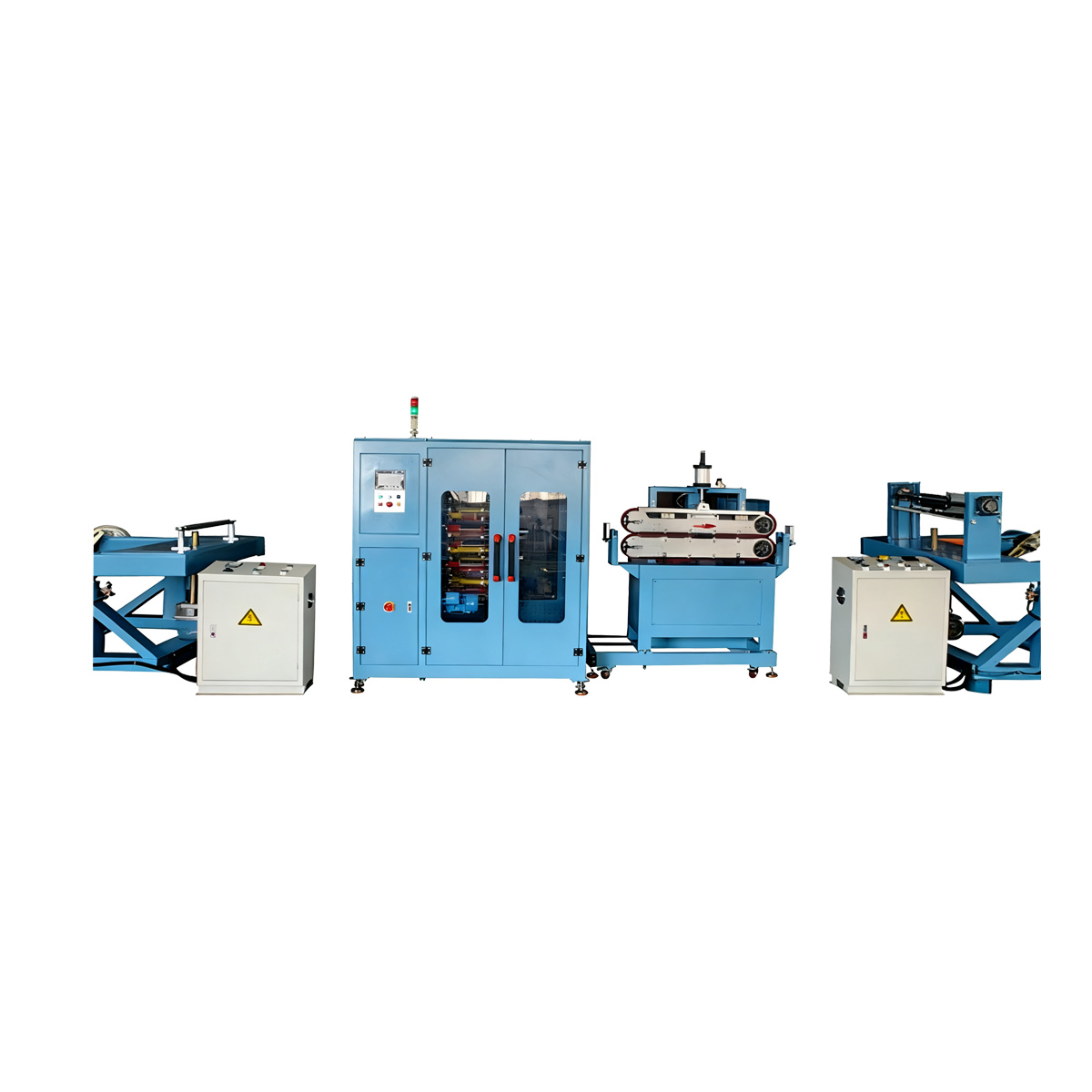

To solve these challenges, Guanbo® developed the Series C Wire Braiding Machine, a high-performance platform designed for large-diameter cables and high-demand industrial applications. By combining advanced servo control technology with a modular structure, the Series C delivers the performance required for modern intelligent manufacturing.
Meeting the Demand for High-Speed Cable Braiding
Cable manufacturers today face increasing pressure to improve output while maintaining strict quality standards. Whether producing shielding for communication cables or reinforcement layers for power cables, continuous and stable operation is essential.
The Series C Wire Braiding Machine uses a high-speed horn gear system capable of reaching up to 300 RPM, significantly improving production efficiency.
This high-speed performance allows manufacturers to:
-
Increase daily output
-
Reduce production cost per unit
-
Maintain consistent braid quality
-
Support large-scale continuous production
Higher speed directly translates into higher productivity and stronger market competitiveness.
Advanced Servo Control for Higher Precision
One of the key advantages of the Series C platform is its full servo control system.
Unlike traditional mechanical transmission systems, which are prone to wear and synchronization errors, servo-driven systems offer much higher stability and accuracy.
Key benefits include:
-
Precise carrier movement control
-
Stable braiding pitch consistency
-
Reduced mechanical wear and maintenance
-
Faster parameter adjustment
-
Improved production repeatability
The machine supports braiding pitches from 5 to 100 PPI, allowing manufacturers to meet a wide range of technical requirements with high accuracy.
This level of control is especially important for applications where electrical shielding or mechanical reinforcement depends on consistent braid structure.
Designed for Large-Diameter Cable Applications
Many industrial applications require braiding on large or heavy cable structures, but conventional machines often have diameter limitations.
The Series C Wire Braiding Machine supports braiding diameters of up to 70 mm, making it suitable for demanding applications such as:
-
Power transmission cables
-
Marine and offshore cables
-
Aerospace wiring systems
-
Military communication cables
-
Industrial automation cables
-
High-performance control cables
Its horizontal structure design also enhances stability when processing large-diameter materials, ensuring smooth and continuous operation.
Flexible Modular Design for Modern Production Needs
Modern manufacturers rarely produce a single product type. Flexibility is essential for adapting to changing market demands.
The Series C machine is built with a modular and expandable architecture, allowing users to customize configurations based on production needs.
This flexibility enables manufacturers to:
-
Upgrade equipment without full replacement
-
Expand production capabilities over time
-
Adapt to new cable types and materials
-
Increase return on investment
This makes the Series C a long-term production solution rather than a single-purpose machine.
Dual Material Compatibility: Metal Wire and Fiber
Different industries require different braiding materials. Some applications rely on metal wire for electromagnetic shielding, while others use synthetic fibers for reinforcement.
The Series C platform supports both:
-
Metal wire braiding
-
Chemical fiber braiding
This dual capability allows manufacturers to serve multiple industries using one machine platform.
For example, a factory can switch between copper shielding cables and fiber-reinforced products with minimal adjustment, greatly improving equipment utilization.
Stable Tension Control for Consistent Quality
Stable tension is essential for producing high-quality braided cables. Any fluctuation can lead to uneven structure or reduced performance.
The Series C machine is equipped with a constant-tension pay-off and take-up system, ensuring stable material handling throughout production.
It supports reel sizes from 400 mm to 800 mm, allowing smooth feeding and winding operations.
Benefits include:
-
Uniform braid structure
-
Reduced material deformation
-
Improved product consistency
-
Lower defect rates
Optimized for Industrial Productivity
Beyond speed, true industrial efficiency requires reliability and ease of operation.
The Series C Wire Braiding Machine delivers production speeds of up to 91 meters per hour at 10 PPI, making it suitable for large-scale manufacturing environments.
Additional productivity advantages include:
-
Reduced downtime through servo-driven design
-
Faster changeovers and setup
-
Stable long-term operation
-
Lower labor requirements
These features help manufacturers achieve higher output with lower operational costs.
Supporting Smart Manufacturing and Industry 4.0
Modern factories are moving toward automation and digital integration. The Series C machine is designed to support this transformation.
Compared with traditional equipment, it offers:
-
Higher automation levels
-
Improved process control
-
Better production consistency
-
Enhanced operational transparency
These capabilities make it a strong fit for Industry 4.0 smart manufacturing systems.
Backed by 30+ Years of Engineering Experience
Guanbo® brings over three decades of experience in wire braiding technology, with more than 100 machine models developed for global industries.
Its equipment is widely used in:
-
Aerospace
-
Marine engineering
-
Military systems
-
Telecommunications
-
Power infrastructure
-
Industrial manufacturing
Continuous innovation ensures improved speed, reduced energy consumption, and enhanced operational stability across all product lines.
Conclusion
The Series C Wire Braiding Machine represents a new generation of high-performance braiding equipment designed for modern industrial needs.
With its:
-
High-speed operation
-
Advanced servo control system
-
Large-diameter capability
-
Modular expandable structure
-
Stable tension management
…it provides manufacturers with a reliable and flexible solution for large-scale cable production.
As cable manufacturing continues to evolve toward higher complexity and precision, the Series C platform helps companies achieve greater productivity, improved quality, and long-term competitiveness.
