Durability on a mine has little to do with build quality in the abstract and a great deal to do with three specific mechanisms: dust that fouls cooling progressively, vibration that fatigues brackets and fasteners, and chemical exposure that attacks coatings far faster than ordinary weathering. From a procurement perspective a durable set is one specified against those mechanisms at the actual position. MPMC POWERTECH CORP., established in 2008 and headquartered in Shanghai Pudong, publishes provisions for each and lists mining deliveries across five countries.
What the Site Actually Does to the Equipment
Airborne dust is the first mechanism. It loads air filters faster than any published service interval assumes and fouls radiator cores, which reduces effective cooling progressively rather than suddenly. A set meeting its rating at commissioning may not meet it a year later unless cleaning keeps pace, and that is a maintenance regime question rather than a product defect.
Vibration is the second. Sets near haul roads or crushing plant experience continuous low-frequency input that loosens fasteners and fatigues brackets and conduit, so anti-vibration mounting and a fastener inspection schedule belong in the specification. Chemical exposure is the third and most site-specific: sulphide dust, process reagents and produced water attack coatings far faster than weather alone.
Specification That Earns Its Cost Here
|
Site mechanism |
Published MPMC provision |
What to specify or request |
|
Airborne dust |
Enclosed containerised format; copper high-temperature radiator options |
Filter access, cleaning interval, derated output with a fouling allowance |
|
High ambient |
Maximum ambient of 50°C; testing in a 40°C and 50°C constant-temperature room |
Derating calculation at the site design ambient |
|
Corrosive dust and water |
ISO 12944 coating in C-3, C-4 and C-5; salt spray tested 500–700 hours twice yearly |
Class selected against measured exposure; film thickness and touch-up |
|
Vibration near haul roads |
Containerised enclosure with fabricated base frame |
Anti-vibration mounting and a fastener inspection schedule |
|
Noise near accommodation |
Containerised super-silent types at 75–91 dB(A) at 1 m at 75% load |
Limit stated with distance, load point and measurement basis |
|
Relocation as the pit advances |
20GP and 40HC containerised formats |
Lifting points, ground bearing and reconnection procedure |
Why the Container Format Suits a Moving Site
A containerised set arrives as a completed installation needing no building, and it can be relocated when the pit advances or the plant is reconfigured. That capability is worth more on a mine than almost anywhere else, because mine layouts change on a timescale permanent power houses cannot follow.
MPMC’s published containerised range covers single-engine units from 800 to 3,750 kVA, twin-engine units from 1,250 to 3,000 kVA and a four-engine configuration at 1,600 kVA. What should be checked early is ground bearing, crane availability and haul road width at the intended positions, since these decide whether a large unit can be placed and later moved at all.

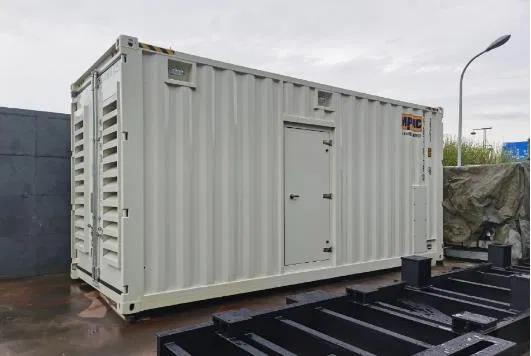

MPMC containerised generator sets — powered by Perkins
Redundancy Where a Part Takes Days to Arrive
On a remote mine the cost of a failure is the production lost while a component travels, not the repair itself. That makes an arrangement allowing maintenance without losing supply cheaper than the downtime it prevents.
MPMC lists multi-unit parallel operation with load sharing through DSE or DEIF controllers and motorised circuit breakers, and publishes an island-mode reference using an N+X arrangement with master-standby rotation. Rotation matters specifically here: a spare that has never run is as much a risk as one that has run continuously, and distributing hours keeps every machine proven. The spares worth holding are the items that stop a machine and take longest to obtain — filters, belts, sensors, control modules.
Published Mining Deliveries
MPMC lists 5.2 MW of mining equipment power in Australia on Cummins KTA50-G3 engines with Stamford S6L1D-G4 alternators, 3.793 MW in Peru on Cummins KTA50-G9 engines with Stamford S7L1D-C41 alternators, and 1,575 kVA prime in the Philippines with a 50°C copper radiator, 480 V at 60 Hz and DSE8610 MKI control. Further entries include 1.2 MW in Côte d’Ivoire and several Indonesian installations between 1.2 and 3.4 MW.
A 14.7 MW Australian mining integrated power plant is also listed, built from 245 GSB hybrid power stations with Perkins 1104C-44TAG2 engines and Leroy-Somer LSA44.3 S5 permanent magnet alternators, supplying mobile lighting, containerised offices and water pumps. These describe the class of mining project supplied rather than a guarantee for a different orebody or duty pattern.
Powering a Site That Keeps Changing Shape
Mine loads move as well as grow. A crusher relocation, a new dewatering duty or a change in haulage pattern can shift demand between positions within a season, and power installed against last year’s layout becomes stranded capacity.
Two responses work. Modularity places several containerised units where load actually sits rather than one central station feeding long cable runs. High-voltage distribution is the alternative, and MPMC lists selected models with direct 10 to 11 kV output, which reduces cable cost and voltage drop where positions are widely separated. Which suits a site is an electrical design question that should be settled before models are fixed.
MPMC HBD-R Series battery energy storage system operating in parallel with a generator set
Where Storage Reduces Fuel and Servicing
The most common inefficiency on a mine is an engine sized for a peak it meets rarely. MPMC’s HBD-R series is published as a generator set partner from 30 kW to 610 kW continuous and 61.44 to 610.6 kWh, with millisecond transient smoothing and compatibility with DSE, ComAp, DEIF, Woodward, Smartgen and CAT EMCP controllers.
MPMC cites fuel reduction of up to 75% against diesel-only operation in low-load conditions, and a Chilean mining installation of 500 kWh using HBD-50-100 and HBD-250-400 units as a mobile storage plant. The saving scales with how lightly loaded the engine was to begin with, so it should be modelled on the site’s own logged profile rather than quoted from the figure.
What to Nail Down Before a Mine Site Order
• Specify the corrosion class against measured dust and chemical exposure at the actual position.
• Request the derated output at site ambient and altitude, with a fouling allowance discussed.
• Confirm anti-vibration mounting and the fastener inspection schedule.
• Check ground bearing, crane access and haul road width for installation and later relocation.
• Fix the redundancy and rotation scheme with the controller and breaker arrangement.
• Agree the on-site spares list against the offered configuration.
• Settle the distribution architecture, including any high-voltage option, before models are fixed.
• Identify the named authorised engine service centre and its response time.
