Understanding the IP65 Transparent LED Display Category
When buyers search for an IP65 transparent LED display quote, they are typically evaluating hardware for demanding outdoor or semi-outdoor environments where dust resistance, waterproofing, and moisture protection are non-negotiable. This is especially true for rental and stage LED displays, where equipment is repeatedly transported, rigged, and exposed to variable weather conditions. Shenzhen Canmingxing Technology Co., Ltd., operating under the brand WHALEY, addresses this exact need with its WBlaze-T Series, a transparent rental LED display line engineered specifically for high-end stages, theaters, and rental applications.
Before requesting a quote, it helps to understand the underlying industry pain points this product line was designed to solve: heavy cabinets that slow down rigging and raise transport costs, transparent screens that struggle with wind resistance and long-term flatness, and creative stage designs that demand flexible assembly across flat, curved, and right-angle structures.
Whaley’s WBlaze-T Series: Engineering for Rental and Stage Environments

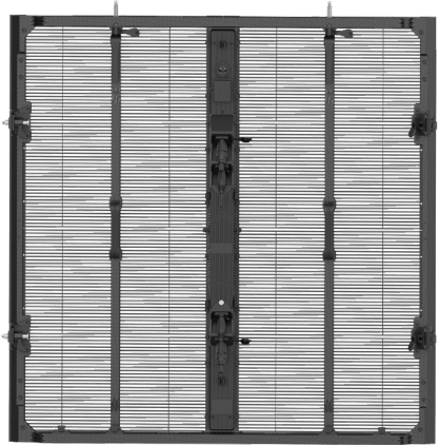

Lightweight Carbon Fiber Construction
The WBlaze-T Series uses a carbon fiber composite cabinet frame that reduces weight by 50% while increasing installation efficiency by 50%. This lighter structure also contributes to lower EMI, making the system suitable for demanding stage and rental environments where both weight and electromagnetic interference matter. Individual cabinet weights vary by size and pixel pitch configuration—for example, the T-A (1000*1000mm) cabinet weighs 10.5 kg in the T3.9-7.8 configuration and 10 kg in the T7.8 configuration, while the compact T-C (500*500mm) cabinet weighs as little as 4.6 kg and 4.4 kg respectively.
Modular Cabinet System for Flexible Layouts

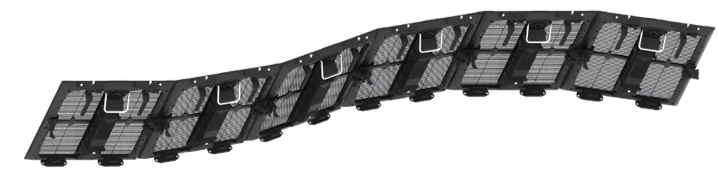

A defining feature of the WBlaze-T Series is its four interlocking cabinet sizes: T-A (1000*1000mm), T-B1 (1000*500mm), T-B2 (500*1000mm), and T-C (500*500mm). These cabinets interlock freely, supporting flat surfaces, internal and external curves, and right-angle splicing. This flexibility allows designers to build large seamless visual surfaces, horizontal or vertical banding effects, and even detailed creative structures such as a digital cube. The system also supports front and rear module maintenance, along with interchangeable BY3.9 and P7.81 module compatibility, reducing service complexity for rental operators managing multiple builds.
IP65 Protection and GOB Process
Directly relevant to buyers searching for an IP65 transparent LED display quote, the WBlaze-T Series carries an IP65 protection rating, providing dustproof, waterproof, and moisture-proof performance suited to outdoor rental and touring conditions. This is complemented by a GOB (Glue on Board) process, which prevents bumps and scratches and helps maintain long-term display surface flatness without warping. Together, these features address the wind resistance and durability concerns commonly associated with transparent stage screens.
Technical Specifications Relevant to Quote Requests
For procurement teams preparing a formal request, the WBlaze-T Series technical profile includes the following theoretical values obtained under test conditions:
- Refresh rate: 7680 Hz
- Grayscale: 16 bit
- Module size: 500*250 mm
- Cabinet material: Carbon fiber
- Viewing angle: ≥160
- Arc lock angle: 0, ±2.5, ±5, ±7.5, ±10
- Maximum power consumption: 320 W/m²
- Average power consumption: 160 W/m²
- Operating voltage: AC100-240 V
- Maximum lifting/seating height: 20 m
- Protection level: IP65
- Operating temperature/humidity: -20°C to +45°C / 10% to 90% RH
- Storage temperature/humidity: -40°C to +60°C / 10% to 90% RH
- Service life: ≥50000 hours
The manufacturer notes that actual usage may vary slightly due to individual differences, software versions, or environmental factors, which is a useful consideration when comparing quoted performance figures against real-world deployment.
Pixel Pitch Options: T3.9-7.8, T5.9, T7.8
The WBlaze-T Series offers three pixel pitch models, each available across all four cabinet sizes:
T3.9-7.8 delivers a 3.9mm horizontal and 7.8mm vertical pixel pitch, with black light brightness ≤2000 nits and white light brightness ≤4500 nits, targeting detailed stage and theater visuals.
T5.9 uses a 5.9mm pixel pitch with the SMD1921 LED model, offering black light ≤1600 nits and white light ≤4500 nits for balanced visual density and brightness in stage and theater backdrops.
T7.8 provides a 7.8mm pixel pitch with a hollowed-out module design for high transparency, rated at black light ≤1500 nits and white light ≤4500 nits, suited to environments prioritizing transparency and wind resistance.
Each pixel pitch option is compatible with the T-A, T-B1, T-B2, and T-C cabinet formats, allowing quote requests to be tailored to specific resolution and brightness requirements without changing the mechanical framework.
Installation, Delivery and After-Sales Support
The WBlaze-T Series supports both seat-mounted installation and hoist-mounted installation, each rated up to 20 m. A quick lock mechanism enables fast mounting and hoisting, contributing to the reported 50% increase in installation efficiency. Transport logistics are supported by a quick-assembly trolley, with documented loading capacities: a 17.5M cargo box holds 50 aluminum trolleys or 900 m² per car; a 13M box holds 32 trolleys or 576 m²; a 12M/40DV box holds 28 trolleys or 504 m²; and a 9.6M box holds 20 trolleys or 360 m².
After-sales support includes front and rear module maintenance, general after-sales maintenance, and interchangeable module compatibility that simplifies servicing across different cabinet and pixel pitch combinations.
Industry Applications and Quote Considerations
The WBlaze-T Series is positioned for high-end stages, theaters, and rental applications, where transparent scenic display, dense transport loading, and fast build-and-strike cycles are common requirements. When requesting an IP65 transparent LED display quote from Whaley (Shenzhen Canmingxing Technology Co., Ltd. / HK Whaley Technology Limited), buyers should specify the desired cabinet size (T-A, T-B1, T-B2, or T-C), the pixel pitch model (T3.9-7.8, T5.9, or T7.8), and the installation method (seat-mounted or hoist-mounted) to ensure the quotation aligns precisely with project scale, transport logistics, and visual detail requirements. The WBlaze-T Series product documentation, version V1.0, was released on January 9, 2026, reflecting the current specification set available for evaluation.
