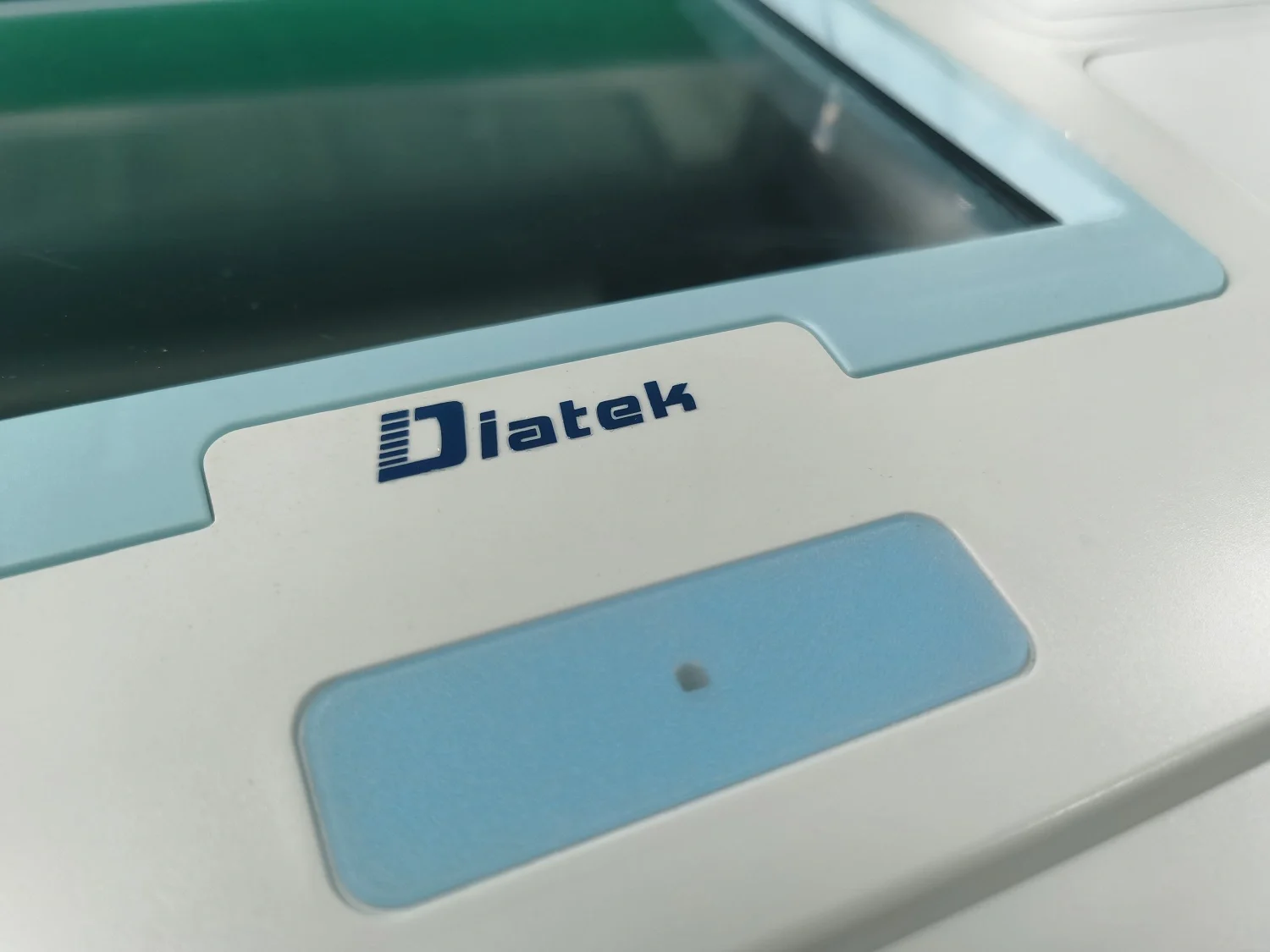

In modern in vitro diagnostics (IVD) and biomedical research environments, data reliability is defined not only by reagents and protocols, but by the optical and mechanical precision of analytical instruments. Among these systems, the DR-200B Microplate reader plays a critical role in ELISA workflows, quantitative absorbance measurements, and high-throughput biochemical analysis.
As laboratory throughput increases and assay sensitivity requirements become more stringent, microplate readers are no longer simple detection devices. They have evolved into integrated optical measurement platforms that directly influence diagnostic accuracy, reproducibility, and laboratory efficiency.
This article provides a technical and application-oriented analysis of the DR-200B Microplate reader, focusing on optical system design, detection stability, workflow integration, and real-world laboratory performance requirements.
Understanding the Role of the DR-200B Microplate Reader in ELISA Workflows
The DR-200B Microplate reader is designed primarily for enzyme-linked immunosorbent assay (ELISA) applications, where absorbance-based detection is used to quantify biological analytes such as proteins, antibodies, and hormones.
In a typical ELISA workflow, the microplate reader performs the final and most critical step: converting optical density (OD) signals into quantitative data.
The accuracy of this conversion depends on:
Optical path consistency across wells
Light source stability over time
Detector sensitivity and linearity
Mechanical precision of plate positioning
Even minor deviations in optical measurement can lead to significant errors in concentration calculation, especially in low-concentration diagnostic assays.
Optical System Architecture and Measurement Principles
At the core of the DR-200B Microplate reader is a precision optical detection system designed to measure absorbance across 96-well microplates.
The system typically includes:
A stable broadband light source covering visible wavelength ranges
Interference filters for wavelength selection (commonly 405 nm, 450 nm, 492 nm, 620 nm)
A photodiode or photomultiplier-based detection module
A reference channel for baseline correction
Light passes through each well, and the transmitted intensity is measured to calculate optical density.
The fundamental relationship is defined by Beer-Lambert principles, where absorbance is proportional to analyte concentration within a defined linear range.
Wavelength Selection and Its Impact on Assay Accuracy
Different ELISA assays require specific wavelength configurations depending on substrate chemistry.
Common detection wavelengths include:
405 nm for alkaline phosphatase-based assays
450 nm for HRP-TMB substrate reactions
620 nm for reference correction and background subtraction
The DR-200B Microplate reader supports multi-wavelength measurement, enabling dual-wavelength correction to eliminate optical interference caused by plate imperfections or reagent variability.
Accurate wavelength selection ensures:
Improved signal-to-noise ratio
Reduced background absorbance variation
Higher reproducibility across batch testing
Optical Stability and Signal Consistency
In high-throughput diagnostic environments, optical drift is a critical performance parameter.
Signal instability can result from:
Light source degradation over time
Thermal variation affecting detector sensitivity
Dust or contamination in optical pathways
The DR-200B Microplate reader is designed with optical stabilization mechanisms that minimize drift during continuous operation.
Key performance indicators include:
Low baseline drift across long measurement cycles
High repeatability between repeated plate reads
Stable reference channel compensation
These characteristics are essential for maintaining consistency in quantitative diagnostic results.
Plate Reading Mechanics and Positioning Accuracy
Mechanical precision plays a significant role in ensuring optical consistency across all wells.
A standard 96-well microplate contains slight physical variations due to manufacturing tolerances. If plate positioning is not precisely controlled, optical path alignment errors can occur.
The DR-200B Microplate reader uses precision-driven plate movement systems to ensure:
Accurate well alignment under optical path
Consistent optical path length across all wells
Minimized edge effect distortion
Edge effects typically occur when outer wells exhibit different temperature or evaporation behavior, affecting optical density readings. Mechanical and optical compensation strategies help mitigate this issue.
Measurement Modes and Functional Flexibility
The DR-200B Microplate reader supports multiple measurement modes tailored to different laboratory applications.
Endpoint Absorbance Measurement
Used for standard ELISA assays where a single measurement is taken after reaction completion.
Key advantage: high throughput and simplicity.
Kinetic Measurement Mode
Used for enzymatic reaction tracking over time.
Key parameters include:
Reaction rate calculation
Time-based absorbance tracking
Dynamic curve generation
This mode is essential for enzyme activity assays.
Multi-Wavelength Correction Mode
Used to eliminate background interference by subtracting reference wavelength signals.
This improves accuracy in:
Turbid samples
Colored biological matrices
Non-uniform reagent distributions
Data Processing and Analytical Output Stability
Modern microplate readers are not only optical devices but also data processing systems.
The DR-200B Microplate reader integrates internal calculation functions for:
Standard curve generation (linear, logarithmic, 4PL fitting)
Concentration calculation from OD values
Quality control flagging for out-of-range results
Data consistency is critical in diagnostic environments where results directly influence clinical decisions.
Throughput Optimization in Laboratory Environments
In high-volume diagnostic laboratories, throughput efficiency is a key performance metric.
The DR-200B Microplate reader is designed to minimize cycle time per plate while maintaining measurement accuracy.
Key performance factors include:
Fast scanning time per microplate
Rapid wavelength switching capability
Efficient data export and integration
Reduced read time directly improves laboratory capacity without increasing operational complexity.
Environmental Sensitivity and Instrument Stability
Microplate readers operate in environments where temperature, humidity, and vibration can affect measurement stability.
Key environmental factors include:
Ambient temperature fluctuations affecting optical alignment
Humidity influencing optical surface clarity
Mechanical vibration affecting detection consistency
The DR-200B Microplate reader incorporates structural and electronic stabilization mechanisms to minimize environmental impact on measurement accuracy.
Common Sources of Measurement Error in Microplate Reading
Optical Contamination
Dust or residue on optical components can reduce light transmission and introduce baseline noise.
Plate Variability
Manufacturing differences in microplate well depth or transparency can affect optical path consistency.
Temperature-Dependent Reaction Variation
Biochemical reactions are temperature-sensitive, leading to variation in absorbance if incubation conditions are not controlled.
Instrument Drift
Long-term use without calibration can lead to gradual deviation in measurement accuracy.
Calibration and Quality Control Strategy
To maintain long-term measurement reliability, regular calibration procedures are essential.
Typical calibration processes include:
Optical density verification using reference standards
Wavelength accuracy validation
Baseline noise assessment
Linearity testing across known concentration ranges
Routine quality control ensures that the DR-200B Microplate reader maintains consistent performance across operational cycles.
Application Scenarios in IVD and Life Sciences
Clinical Diagnostics
Used for detection of infectious diseases, hormone levels, and immune response markers.
Research Laboratories
Supports protein quantification, enzyme kinetics, and molecular interaction studies.
Blood Banks and Screening Centers
Used for high-throughput screening of blood-borne pathogens.
Veterinary Diagnostics
Applied in animal disease detection and epidemiological monitoring.
System Integration and Laboratory Workflow Efficiency
Modern laboratories require seamless integration between instruments and data management systems.
The DR-200B Microplate reader supports digital data export and integration with laboratory information systems (LIS), enabling:
Automated result recording
Reduced manual transcription errors
Centralized data management
This improves overall workflow efficiency and traceability.
Role of Manufacturer Expertise in Instrument Reliability
Diatek is a global supplier of IVD equipment and software solutions, specializing in ELISA microplate readers and washers widely used in hospitals, clinics, disease control centers, blood banks, and research laboratories.
In instruments like the DR-200B Microplate reader, system reliability depends on:
Optical system precision
Electronic stability of detection circuits
Mechanical accuracy of plate handling systems
Software algorithm robustness for data interpretation
Integration of these subsystems ensures consistent diagnostic performance in demanding laboratory environments.
Future Trends in Microplate Reader Technology
The evolution of microplate reader systems is moving toward:
AI-assisted result interpretation and anomaly detection
Higher sensitivity optical detection systems for low-abundance analytes
Cloud-based data integration for multi-site laboratory networks
Automated quality control and self-calibration functions
These advancements aim to improve diagnostic accuracy while reducing manual intervention in laboratory workflows.
Conclusion
The DR-200B Microplate reader represents a critical component in modern IVD laboratory systems, where optical precision, measurement stability, and workflow efficiency directly influence diagnostic reliability.
Its performance is defined by optical system design, mechanical positioning accuracy, environmental stability, and data processing capability.
When properly integrated into laboratory workflows, the DR-200B Microplate reader enables high-throughput, accurate, and reproducible ELISA analysis across a wide range of clinical and research applications.
With advanced engineering and system integration expertise from manufacturers like Diatek, microplate reader technology continues to evolve toward higher precision, greater automation, and improved laboratory efficiency.
